Pontoon access gangways
Fabricated assemblies between a fixed landing and floating pontoon, with movement and connection details taken from the site design.
Custom fabrication · Marine

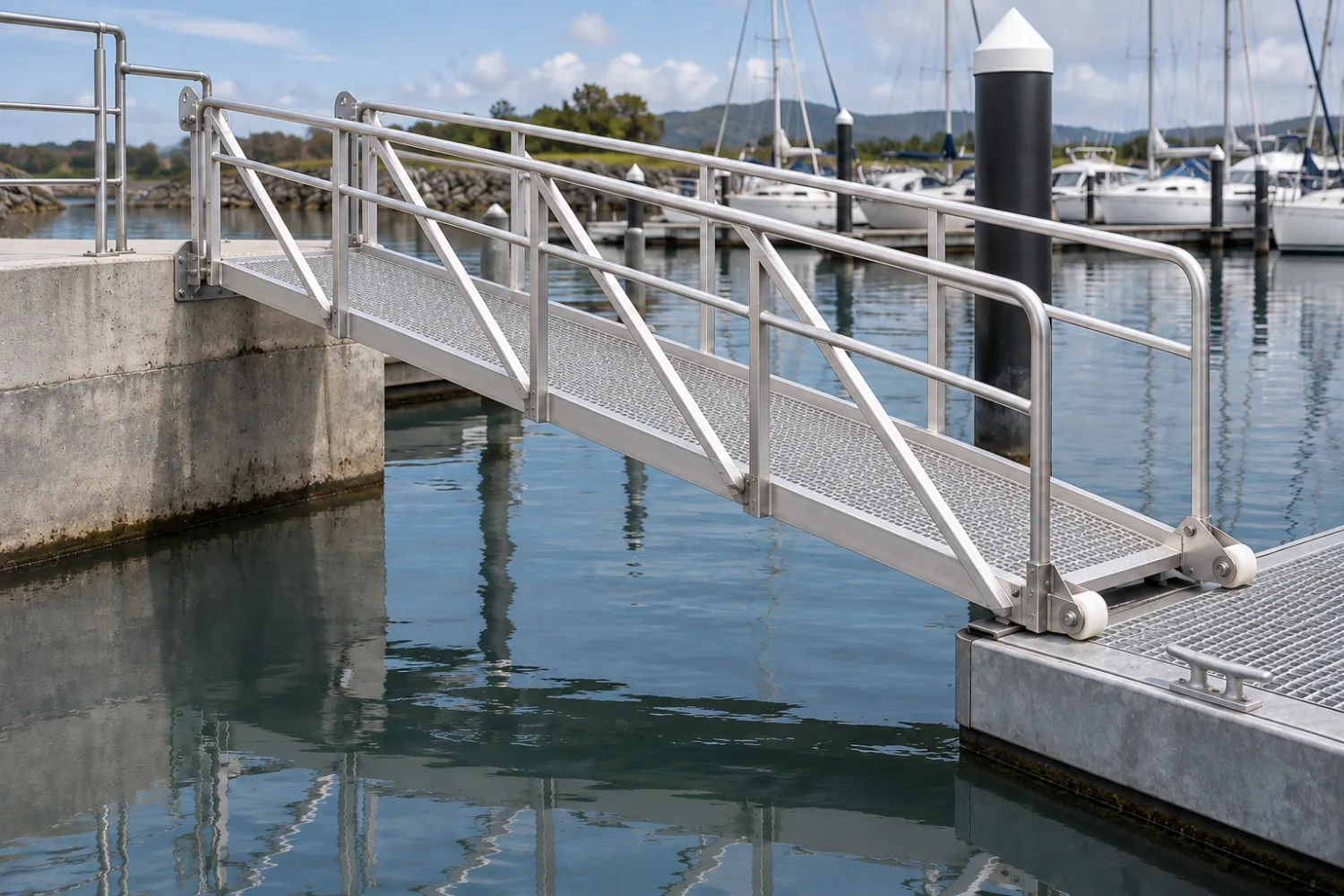

Marine gangways built around both ends of the crossing.

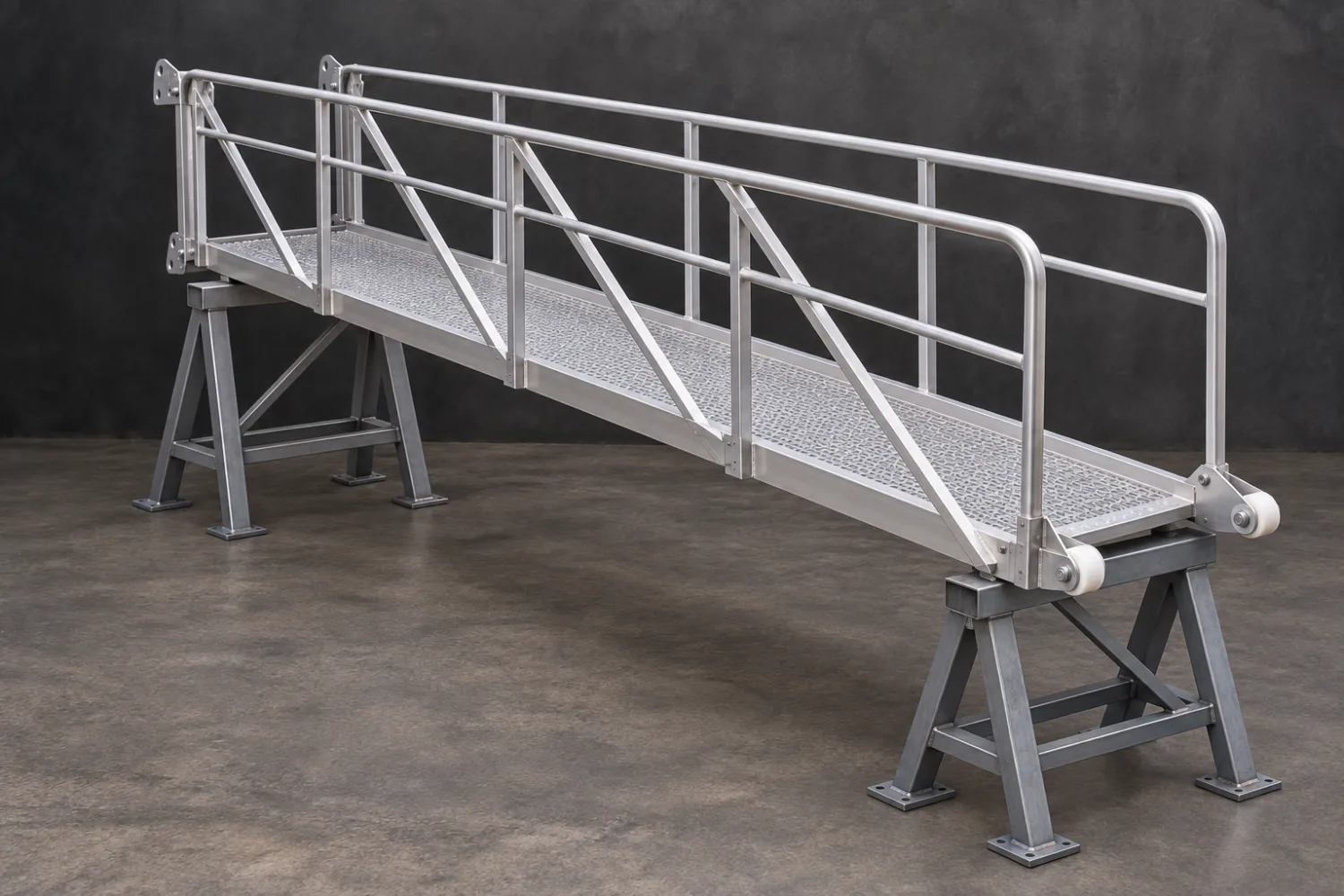

Marine gangways
Connect a fixed landing to a pontoon or jetty with a gangway fabricated for the site’s access design. We build the metal frame, deck supports, rails and specified connections around the span, loading and movement the completed crossing must accommodate.
Get a quote for your projectOr call Matt 021 2555 443
- Site-specific movement
- Water levels and landing interfaces included
- Substantial structure
- Frame and connections built to the agreed design
- Access to suit
- Decking and rails arranged for intended users
02 / Price & scope
Indicative custom marine gangway pricing.
Planning estimates in NZD, excluding GST. Length, width, loading, material, decking, rails and moving interfaces determine the final quote.
Discuss your quote with MattCustom marine gangway
Supply-only fabrication estimate for a short pedestrian gangway with frame, agreed metal deck and rails. The span, loading and connections are specified before a fixed quote.
$6,500from, + GST per gangway assembly
Estimated $6,500–$25,000 + GST per gangway assembly
Details to agree for your job
- Frame fabricated to the project design
- Deck and rail configuration agreed
- Landing connection details coordinated
- Transport and assembly method planned
Scope & other costs
Engineering, testing, consent and survey work, pontoons, foundations, proprietary connection hardware, freight, lifting and installation are separate unless itemised. Long-span and major commercial systems are quoted individually.
03 / Also built here
Plan the rest of your project.
Explore related products and fabrication services from the Patumahoe workshop.
Marine fittings
Bow rails, rocket launchers, rod holders, bait boards, tanks and commercial fishing gear in 316.

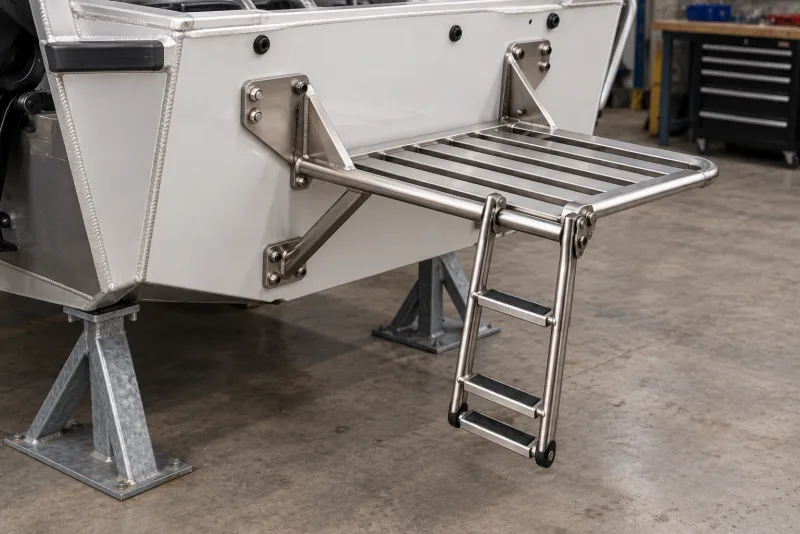

Boat boarding platforms
Custom boarding platforms, swim ladders and supporting metalwork shaped around the transom.
Access platforms & stepovers
Platforms and crossovers for equipment servicing, working positions and routes across a plant.
04 / The practical details
Questions about custom marine gangways and pontoon access ramps.
Can you build to our marine engineer’s drawings?
Yes. Matt has extensive experience with rated and compliance-related fabrication. Send the drawings, materials, loads and documentation requirements so the fabrication and verification scope can be agreed.
How is pontoon movement allowed for?
The site design establishes the movement range and the hinge, roller or guide arrangement. We fabricate the frame and interfaces to those details, coordinating the deck transitions and clearances with the designer.
Can the gangway accommodate trolleys or equipment?
Yes. Include the loaded equipment weight, wheel contact, turning space and required clear width in the brief. Those details are considered with the pedestrian use, deck surface and complete support design.
Can you replace a gangway without replacing the pontoon?
Yes, a new gangway can be made around suitable existing structures. Send the current connections, support details and site movement information so Matt can coordinate the replacement and any interface alterations.
How it works
Spec, quote, fabricate, hand over.
01
Spec
We confirm size, materials, the loadings or spec and how it will be used.
02
Quote
It is all priced before any steel is cut, so there are no surprises.
03
Fabricate
Built in the Patumahoe workshop to the agreed spec.
04
Handover
Collection, delivery and any installation are arranged as agreed in your quote.
Let’s make it fit
Show Matt what you’re working with.
Send the access drawings, span, required clear width and levels at both ends. Include water-level and pontoon movement information, intended users and loads, connection details, exposure and the route for delivery and lifting.
