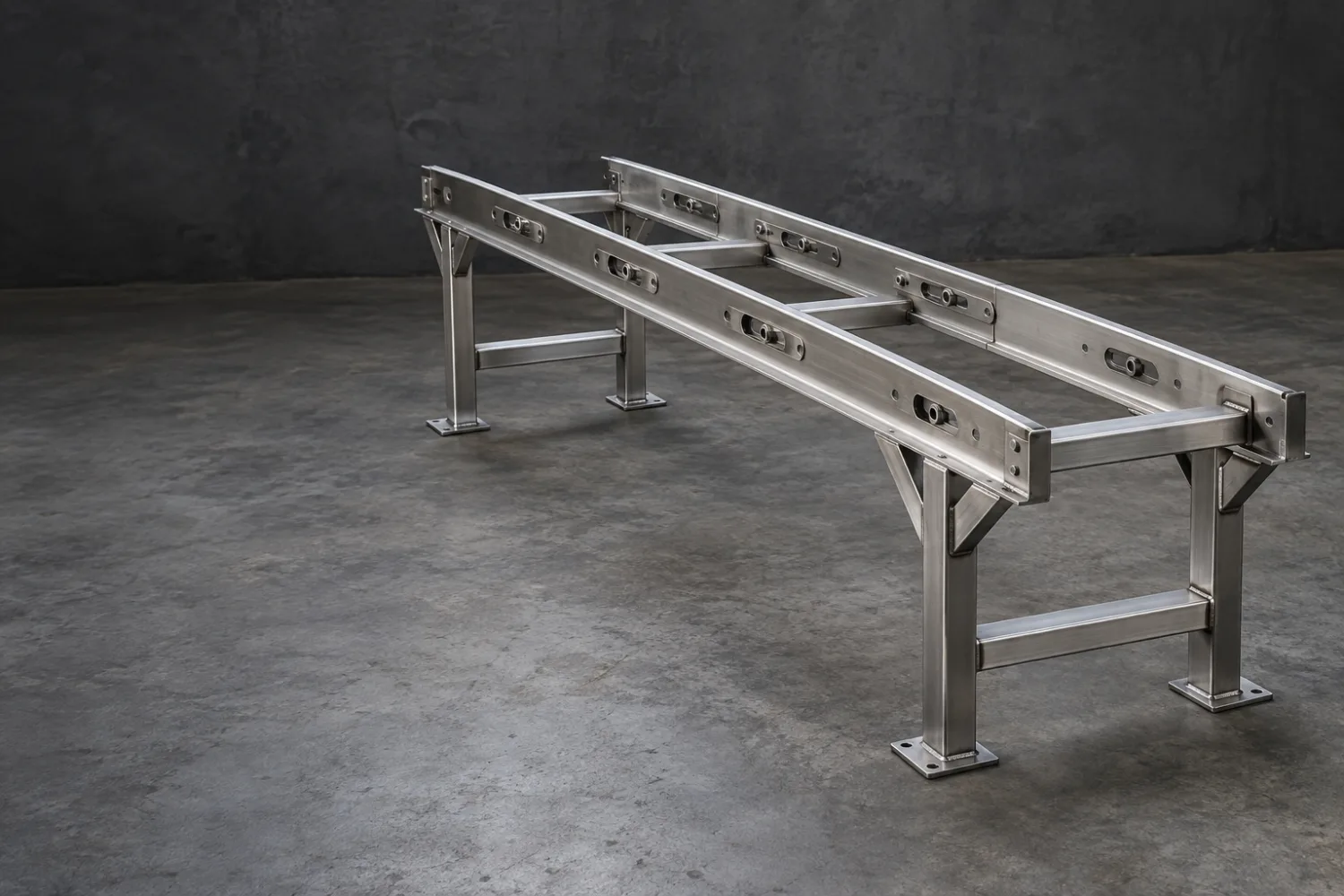

Roller conveyor frames
Side rails, crossmembers and leg assemblies with roller positions and mounting details matched to the selected rollers and the products being moved.
Custom fabrication · Industrial
Conveyor frames made around the components that keep your line moving.
Conveyor frames
We fabricate conveyor frames, replacement side rails and mounting assemblies to your equipment layout. Roller positions, bearing mounts, drive interfaces and maintenance access are built into the metalwork, whether you are replacing a damaged section or fitting a new section into an existing line.
Get a quote for your projectOr call Matt 021 2555 443
- Components matched
- Roller and bearing positions built into the frame
- Line fit
- Height and adjoining interfaces coordinated
- Service access
- Drive mounts and guarding attachments planned
02 / Price & scope
Indicative conveyor-frame fabrication pricing.
Researched planning estimates in NZD, excluding GST. Frame length, material, mounting precision, adjustment details and cleaning access affect the quote.
Discuss your quote with MattCustom conveyor frame section
A fabricated frame with the agreed component mounting points and supports. Supply-only frame estimate.
$1,500from, + GST per section
Estimated $1,500–$6,500 + GST per section
Details to agree for your job
- Roller, bearing and drive interfaces coordinated
- Frame dimensions matched to the line
- Support and adjustment details agreed
- Guard attachment and maintenance access considered
Scope & other costs
Rollers, bearings, belts, motors, controls, guards, installation and commissioning are separate unless listed in the quote. This price guide covers fabricated metalwork rather than a complete powered conveyor.
03 / Also built here
Plan the rest of your project.
Explore related products and fabrication services from the Patumahoe workshop.

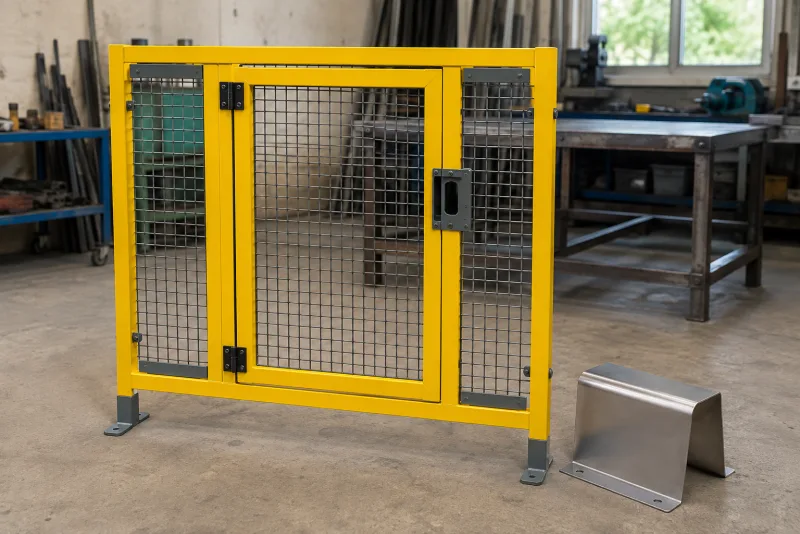

Machine guards
Mesh enclosures, belt covers and hinged guards made to fit the machinery you already run.
Hoppers & chutes
Infeed hoppers, discharge chutes, funnels and bins for food processing and packing lines.

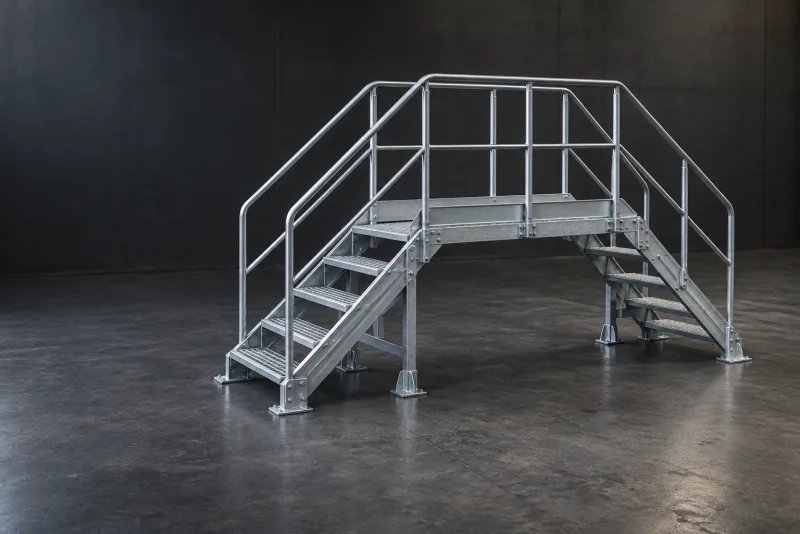

Access platforms & stepovers
Platforms and crossovers for equipment servicing, working positions and routes across a plant.
04 / The practical details
Questions about custom conveyor frames and metalwork.
Can you replace a damaged frame without replacing the whole conveyor?
Yes. Send photos, dimensions and the component layout. We can fabricate the replacement metalwork around reusable rollers, bearings and drives, with their condition and final installation checked by the equipment owner or installer.
Can you make the bearing and motor mounting points?
Yes. Supply the mounting drawings, adjustment requirements and alignment tolerances. We incorporate the plates, slots and connection details into the frame so your installer can fit the specified components.
Can the frame handle heavy products?
Yes. We build the supports and frame around the product loading and operating conditions. Send the maximum item weight, spacing, transfer forces and the equipment designer's requirements so the structure suits the actual duty.
Can you make stainless frames for a wash-down line?
Yes. Tell us how the line is cleaned and supply the equipment's hygiene and access requirements. Material, frame details, drainage and removable sections can then be planned around that environment.
How it works
Spec, quote, fabricate, hand over.
01
Spec
We confirm size, materials, the loadings or spec and how it will be used.
02
Quote
It is all priced before any steel is cut, so there are no surprises.
03
Fabricate
Built in the Patumahoe workshop to the agreed spec.
04
Handover
Collection, delivery and any installation are arranged as agreed in your quote.
Let’s make it fit
Show Matt what you’re working with.
Send the conveyor layout, frame dimensions, product and loading details, plus roller, bearing and drive drawings. Include connection points to the existing line, belt or roller height, cleaning requirements and the installer's alignment tolerances.
