Replacement pipe spools
Straight or offset sections made to replace a worn or altered part of an existing line, with matching end connections and face-to-face dimensions.
Custom fabrication · Food processing & industrial
Pipework made to the route and connections you need.
Pipework fabrication

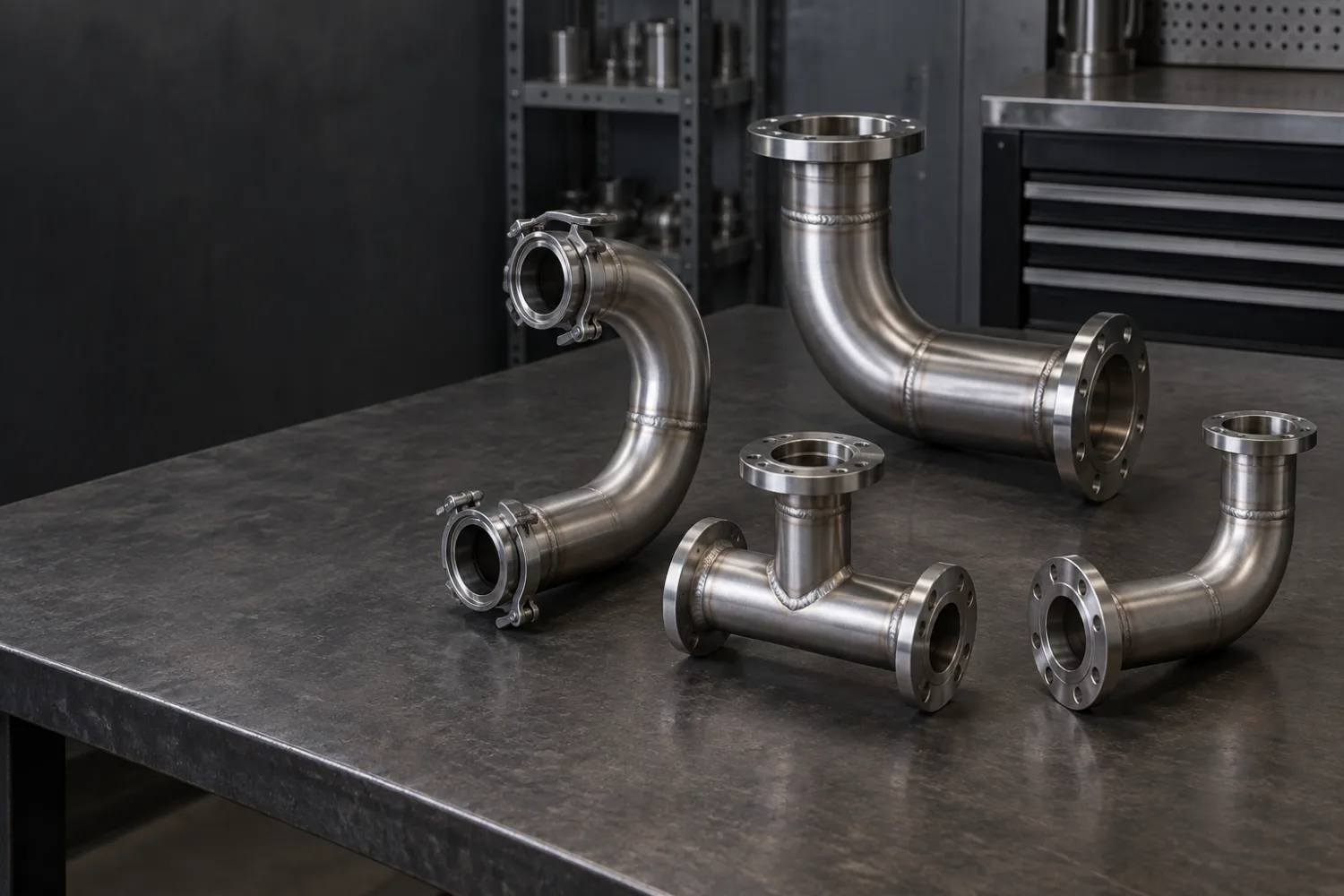

We fabricate pipe spools, manifolds and replacement sections to your supplied drawing or isometric. Whether an existing line needs an offset or a new assembly needs connections in the right places, the dimensions, end fittings and service requirements are agreed before fabrication.
Get a quote for your projectOr call Matt 021 2555 443
- Drawing-led
- Made to your supplied pipework layout
- Connections aligned
- End fittings and flange orientation agreed
- Service considered
- Material, finish and testing scoped for the job
02 / Price & scope
Indicative pipe-spool fabrication pricing.
Researched planning estimates in NZD, excluding GST. Pipe size, material, fittings, weld count, finish and agreed inspection requirements affect the price.
Discuss your quote with MattCustom pipe spool or small assembly
A fabricated section made to a supplied layout with agreed end connections. Supply-only component estimate.
$650from, + GST per assembly
Estimated $650–$4,500 + GST per assembly
Details to agree for your job
- Dimensions and connection orientation confirmed
- Material and supplied service brief reviewed
- Fittings and support interfaces coordinated
- Finish and inspection scope agreed
Scope & other costs
Process-system design, valves, pumps, site installation, commissioning and specialist testing are separate unless included in the written quote. Large or complex manifolds are priced to their drawing.
03 / Also built here
Plan the rest of your project.
Explore related products and fabrication services from the Patumahoe workshop.

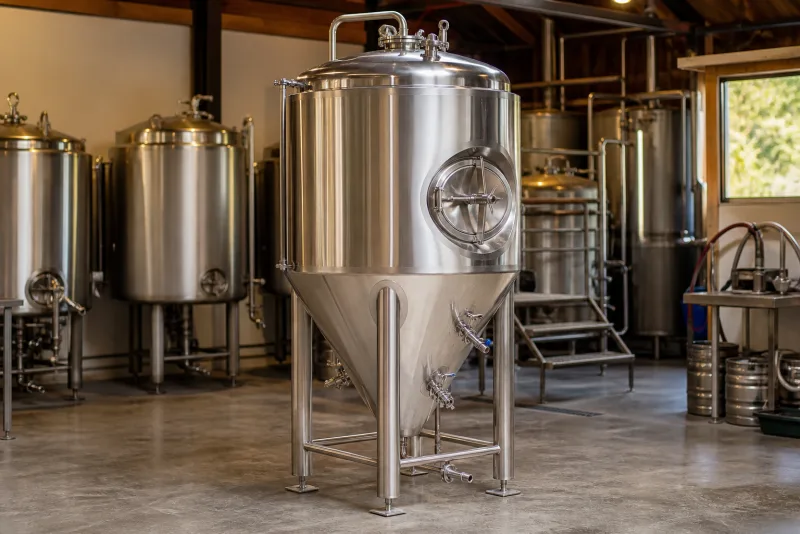

Brewery & wine tanks
Fermenters, brite tanks, liquor tanks and wine vessels, built to volume and fittings.

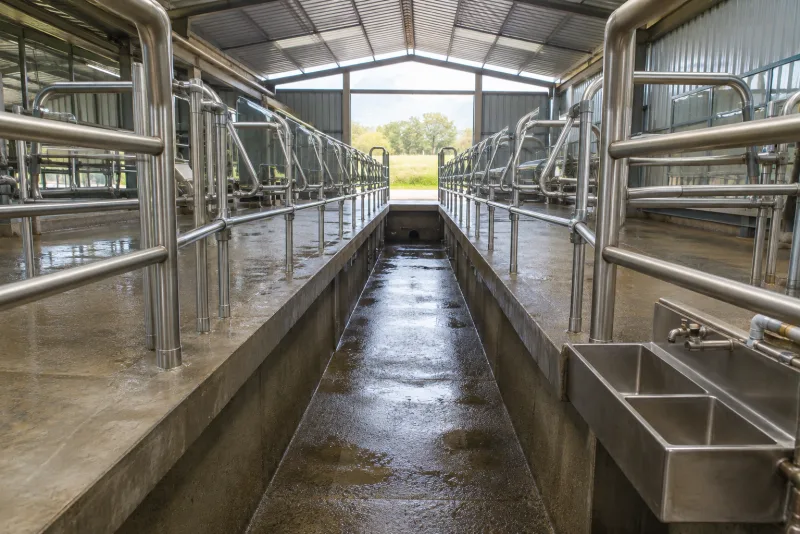

Dairy shed stainless
Milking rails, gates, wash tubs, vat stands and splash panels for herringbone and rotary sheds.
Welding & repairs
TIG and MIG repairs in alloy, stainless and steel — boats, trailers, utes, gates and farm gear.
04 / The practical details
Questions about custom pipe spools and pipework fabrication.
Can you make a spool from an isometric drawing?
Yes. Supply the dimensions, pipe specification, connection schedule and orientation marks. We work through any missing fabrication details before manufacture so the finished section matches the installation brief.
Can you copy an existing pipe section?
Yes. An old section is useful alongside photos and measurements of the installation. Tell us what has changed and why the original needs replacing so connection alignment, material and access are considered together.
Can this be used for food or process pipework?
Yes. Send the process designer's material, internal-finish, cleaning and service requirements. Matt can plan the fabrication around that specification, with the required inspection, testing and documentation agreed for the particular job.
Do you design the whole pressure or pumping system?
This service provides fabricated pipework to an agreed layout and service specification. Your process designer or installer defines the system duty, pressure, flow and equipment selection; we coordinate the fabrication details with that brief.
How it works
Spec, quote, fabricate, hand over.
01
Spec
We confirm size, materials, the loadings or spec and how it will be used.
02
Quote
It is all priced before any steel is cut, so there are no surprises.
03
Fabricate
Built in the Patumahoe workshop to the agreed spec.
04
Handover
Collection, delivery and any installation are arranged as agreed in your quote.
Let’s make it fit
Show Matt what you’re working with.
Send the isometric or dimensioned sketch, material specification, end-connection details and the fluid or service conditions. Include flange orientation, nearby equipment, installation tolerances and any inspection or test requirements from your process designer or installer.
