Counter & beverage trays
Trays for drink-service areas with a removable insert or grate where useful, sized to the counter and the dispensing arrangement.
Home / Products / Drip trays & catch trays
A drip tray that fits the space and empties sensibly.
Catch everyday drips beneath equipment, at a drinks counter or in a cleaning area. We make stainless trays to the footprint you need, with folded edges, removable inserts or a waste connection agreed around how the tray will be used and cleaned.

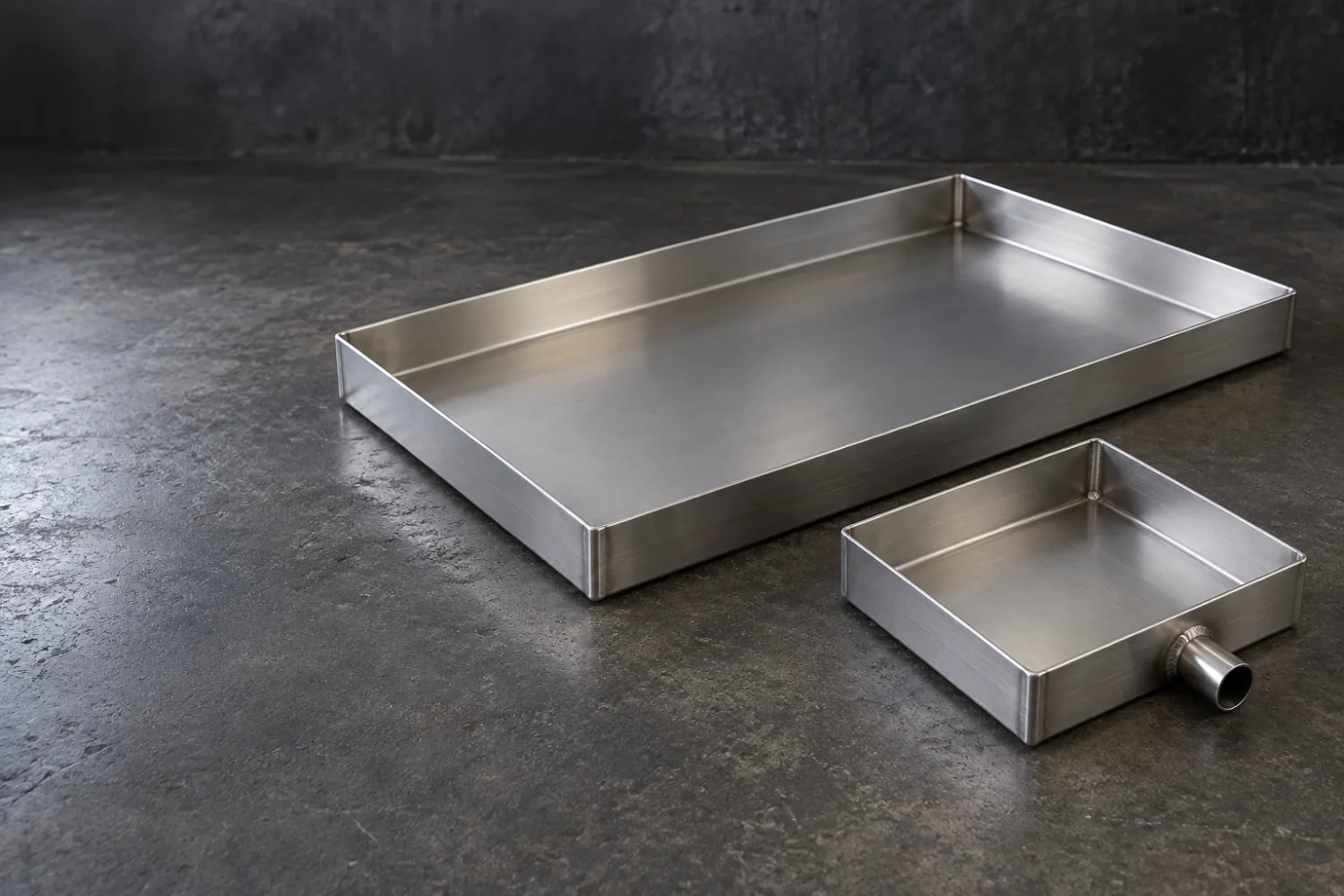

Concept illustration; details vary by project.
Tray applications
Match the tray to the liquid and the cleaning routine.
A shallow counter tray, a catch pan under a machine and a wash-down tray have different priorities. Specify the liquid, temperature, expected volume and how someone will reach the tray to empty or clean it.
Equipment catch trays
A tray beneath specified equipment, with edges and cut-outs arranged around the feet, pipes and service access. Support requirements are checked if equipment sits on the tray.
Drained trays
A welded outlet or agreed waste fitting to suit the installation, with its position and the route to waste confirmed before manufacture.
Removable liners & replacement pans
Lift-out trays made to fit an existing shelf, cabinet or machine opening, allowing enough clearance for removal without tipping the contents.
Indicative pricing
Indicative drip tray pricing.
Researched planning estimates in NZD, excluding GST. Footprint, edge height, material, welding, grates and outlet fittings affect the quote.
Custom stainless catch tray
One fabricated tray with the agreed edge and outlet detail. Supply only.
$180from, + GST per tray
Estimated $180–$1,600 + GST per tray
- Footprint and edge height agreed
- Material selected for the liquid and cleaning method
- Removable inserts or grates quoted if needed
- Outlet position coordinated with the installation
Plumbing and installation are separate unless quoted. Chemical containment, large or load-bearing trays are assessed and priced to their specific requirements.
Questions
Common questions about custom stainless drip trays and catch trays.
Can the tray have a drain?
Yes, a drain outlet can be included in the brief. Specify the fitting, outlet location and waste route, and allow access for cleaning it. The plumber should confirm the connection where the tray drains into building services.
Can equipment sit on top of the tray?
Yes, when the tray and its support are designed for the equipment. Send the operating weight and foot positions so Matt can plan the tray, any grate and the load path to the supporting surface.
Can I use it as a chemical spill bund?
Send the chemical, required containment volume and site specification. Matt can assess the material and fabrication requirements and confirm any design or verification needed for that application.
How do I measure a tray that slides into an existing opening?
Measure the smallest clear width, depth and height along the whole removal route, not just the space at the back. Allow room for fingers or handles, and send photos of anything that prevents the tray lifting or sliding out.
How it works
Spec, quote, fabricate, hand over.
01
Spec
We confirm size, materials, the loadings or spec and how it will be used.
02
Quote
It is all priced before any steel is cut, so there are no surprises.
03
Fabricate
Built in the Patumahoe workshop to the agreed spec.
04
Handover
Collection, delivery and any installation are arranged as agreed in your quote.
Also built here
Other things the workshop makes.
Bar & cocktail stations
Cocktail workstations with ice wells, bottle rails and preparation space in the right places.
ViewFloor grates & drains
Channel drains, floor wastes and heavy-duty grates for kitchens, dairies and wash-down floors.
ViewBrackets & folded parts
Press-brake folding and small-batch brackets, guards, enclosures and flashings.
ViewGot a job in mind? Let’s talk it through.
Send the available footprint, maximum edge height, what liquid the tray will catch and how it will empty. Include equipment photos, any support or load requirements, and whether a removable grate or drain fitting is needed.
